ALR-W1500

ALR-W1500-2L2T

Name: ALR-W1500
Brand: Waaree Autonova

Heavy payloads. Precise control.

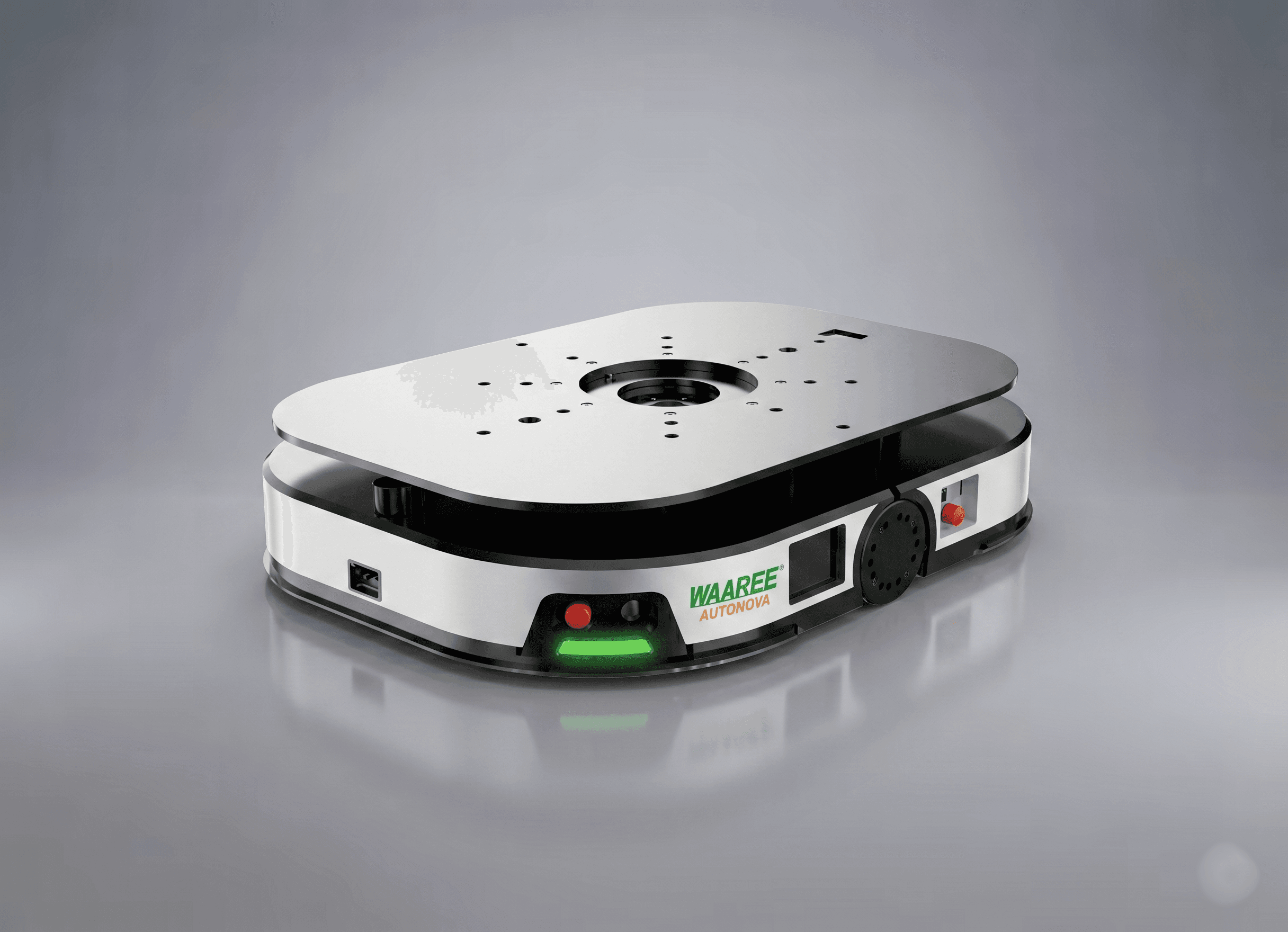

The ALR-W1500-2L2T is a heavy-duty latent lifting AMR engineered for high-payload material handling up to 1500 kg. It combines reliable laser SLAM navigation, stable differential drive, and comprehensive safety systems for demanding warehouse and factory automation, bridging the gap between the ALR-W1000 and the ALR-W2000.

Request a demo

Payload: 1500 kg
Max Speed: 1.3 m/s
Runtime: 8 h
Accuracy: ±10 mm

Scale · 1:101200 × 800 × 290 mm

Waaree Autonova · Industrial automation platformEngineered & manufactured by Waaree Autonova in IndiaEN 1525 safety compliantEN 12895:2015+A1:2019EN IEC 61000-6-2:2019EN IEC 61000-6-4:2019SAP · Oracle · Microsoft connectorsERP · WMS · MES integrations99.9% fleet uptime SLADeployments across 12+ industries24 × 7 operations supportIndustry 4.0 reference architectureWaaree Autonova · Industrial automation platformEngineered & manufactured by Waaree Autonova in IndiaEN 1525 safety compliantEN 12895:2015+A1:2019EN IEC 61000-6-2:2019EN IEC 61000-6-4:2019SAP · Oracle · Microsoft connectorsERP · WMS · MES integrations99.9% fleet uptime SLADeployments across 12+ industries24 × 7 operations supportIndustry 4.0 reference architecture

Overview

Built for the floor, from the floor up.

Highlights

1500 kg rated load capacity
Dual differential drive with precise control
Heavy-duty latent lifting platform
Compact chassis: 1200 × 800 × 290 mm
Maximum speed up to 1.3 m/s

Specifications

Basic Parameters

Navigation: QR code / Laser SLAM / Texture
Product Dimensions (L×W×H): 1200 × 800 × 290 mm
Rotation Diameter: 1440 mm
Lifting Stroke: 80 mm
Lifting Plate Dimensions: 1000 × 700 mm
Rated Load: 1500 kg
Drive Method: Dual differential drive

Safety & Protection

Obstacle Avoidance Angle: 360°
Marker Lights: Standard
Collision Detection: Standard
Sound & Light Alarm: Standard

Mobility & Performance

Max Speed (No Load): 1.3 m/s
Max Speed (Full Load): 1.1 m/s
Stopping Position Accuracy: ±10 mm
Moving Direction: Differential / In-place rotation

Battery & Charging

Battery Life Cycle: 1500 cycles
Rated Operating Time: 8 hours
Charging Time: 2 hours
