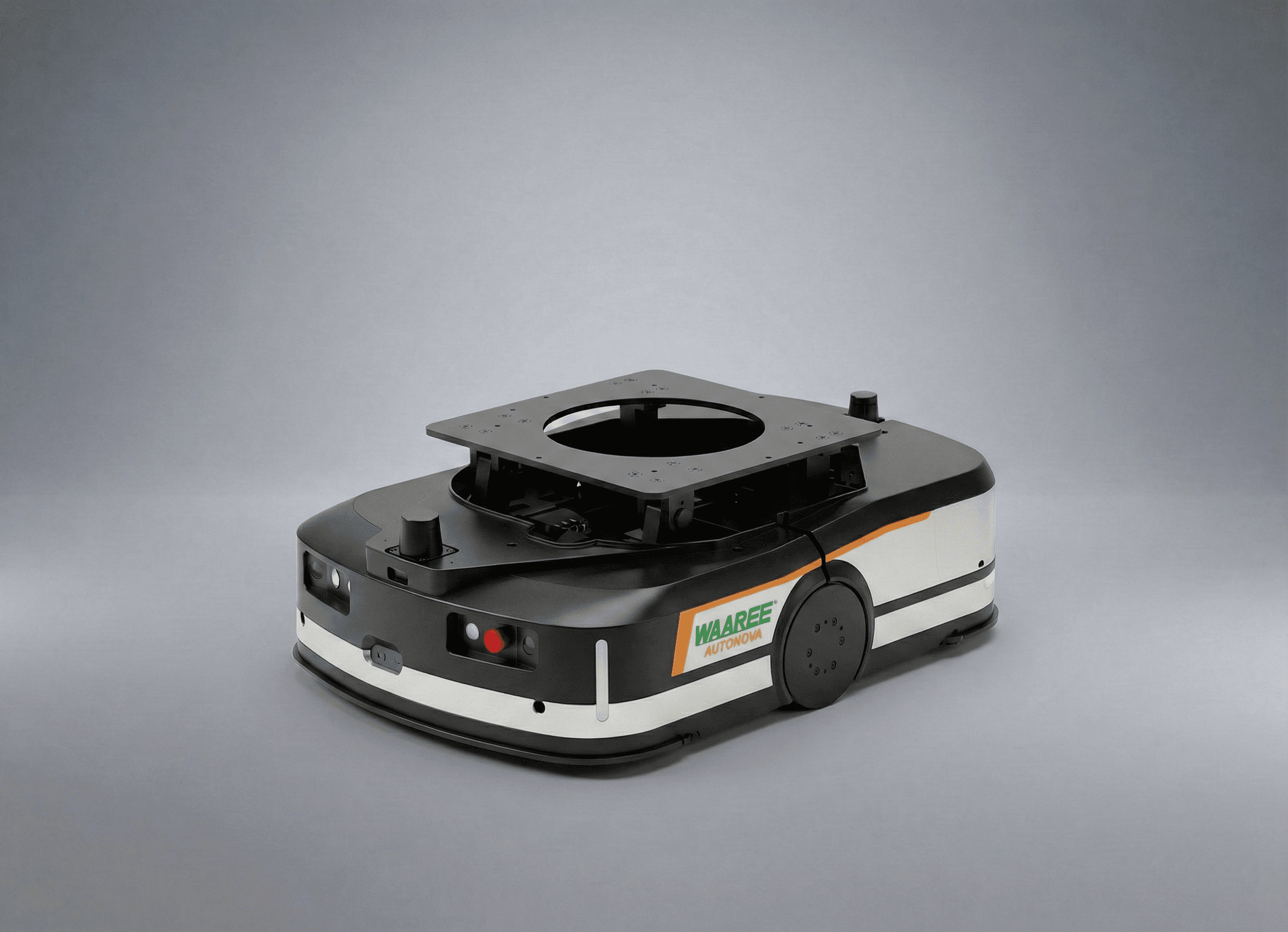

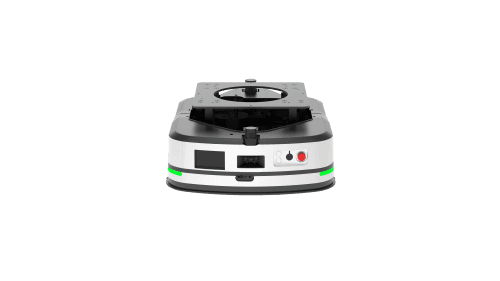

ATR-W600-2L2T
Flexible Transfer. Fast & Intelligent.
- 600 kg rated load capacity
- Customizable material handling method
- QR code, texture & laser SLAM navigation
- High-speed operation up to 2.0 m/s
- Laser & TOF obstacle avoidance
Overview
The ATR-W600-2L2T is a versatile transfer AMR designed for fast and flexible material movement in industrial environments. With customizable material handling options, high operating speed, and precise navigation, it optimizes intralogistics workflows while maintaining safety and stability.
Features
- Customizable material handling configuration
- Bidirectional movement with differential drive
- High-precision stopping accuracy
- Laser & TOF-based obstacle avoidance
- Support for LCD display and touch screen
- Manual or automatic charging with battery replacement support
Specifications
| Specification | Value |
|---|---|
| Basic Parameters | |
| Model | ATR-W600-2L2T |
| Type | Transfer AMR |
| Rated Load | 600 kg |
| Product Dimensions (L×W×H) | 950 × 650 × 300 mm |
| Rotation Diameter | 1000 mm |
| Ground Clearance | 20 mm |
| Material Handling Method | Customizable |
| Machine Weight | 140 kg |
| LCD Display | Supported |
| Touch Screen | Supported |
| Drive Method | Two-wheel differential drive |
| Navigation | QR code, texture, laser SLAM |
| Communication Mode | Wi-Fi |
| Mobility & Performance | |
| Maximum Operating Speed | 2.0 m/s |
| Max Acceleration (No Load) | 1.0 m/s² |
| Stopping Position Accuracy (No Load) | ±10 mm |
| Stopping Angle Accuracy (No Load) | ±1° |
| Climbing Ability | 5% |
| Obstacle Crossing Height | 10 mm |
| Safety & Obstacle Avoidance | |
| Obstacle Avoidance Method | Laser + TOF |
| Collision Bar Detection | Front & Rear |
| Emergency Stop Button | Front & Rear |
| Acoustic & Optical Alarm | Supported |
| Battery & Charging | |
| Battery Type | Lithium iron phosphate |
| Rated Operating Time | 8.0 hours |
| Charging Time | 1.5 hours |
| Charging Mode | Manual / Automatic, manual battery replacement |
| Charge–Discharge Cycle Life | 1500 cycles |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C |
| Charging Temperature | 0°C to 40°C |
| Operating Humidity | 5%–90% RH (non-condensing) |
