Stacking Forklift AMR: AFR-SF-W1500

High-Capacity Stacking. Fully Autonomous.

1500 kg rated load capacity
Laser SLAM navigation
Single rudder wheel drive for precise control
Advanced multi-sensor obstacle avoidance
Automated stacking and pallet handling

Overview

The AFR-SF-W1500 is a high-capacity stacking forklift AMR designed for automated pallet transport and stacking in warehouse and industrial environments. Equipped with Laser SLAM navigation, precise stopping accuracy, and comprehensive safety systems, it delivers stable and efficient autonomous forklift operations.

Features

Laser SLAM autonomous navigation
Single rudder wheel drive system
High-precision pallet pickup and placement
Multi-layer obstacle avoidance sensors
Support for LCD display
Manual or automatic charging with battery replacement support

Specifications

Specification	Value
Basic Parameters
Model	AFR-SF-W1500
Type	Stacking Forklift AMR
Rated Load	1500 kg
Product Dimensions (L×W×H)	1608 × 830 × 1910 mm
Load Center Distance	600 mm
Rear Fork Height After Lifting	200 mm
Minimum Pickup Channel	2000 mm
Minimum Fork Height from Ground	84 ± 3 mm
Machine Weight	420 kg
LCD Display	Supported
Drive Method	Single rudder wheel drive
Navigation	Laser SLAM
Communication Mode	Wi-Fi
Mobility & Performance
Maximum Operating Speed (No Load)	1.2 m/s
Stopping Position Accuracy (No Load)	±10 mm
Climbing Ability	3° / 5%
Safety & Obstacle Avoidance
Obstacle Avoidance Method	Laser, visual, photoelectric, safety contact edge
Collision Bar Detection	Supported
Emergency Stop Button	Supported
Acoustic & Optical Alarm	Supported
Battery & Charging
Rated Operating Time	6.0 hours
Charging Mode	Manual / Automatic, manual battery replacement
Charge–Discharge Cycle Life	2000 cycles
Operating Environment
Operating Temperature	0°C to 40°C
Operating Humidity	5%–90% RH (non-condensing)

Gallery

Stacking Forklift AMR: AFR-SF-W1500 — view 1

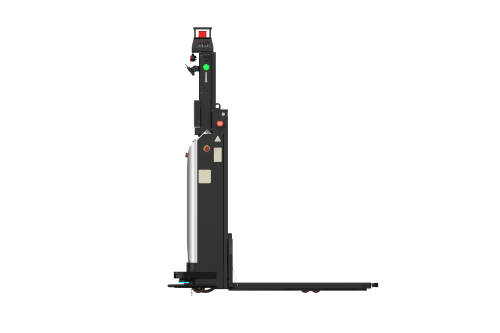

Stacking Forklift AMR: AFR-SF-W1500 — view 2

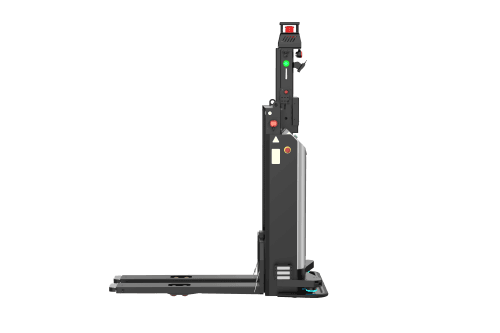

Stacking Forklift AMR: AFR-SF-W1500 — view 3
