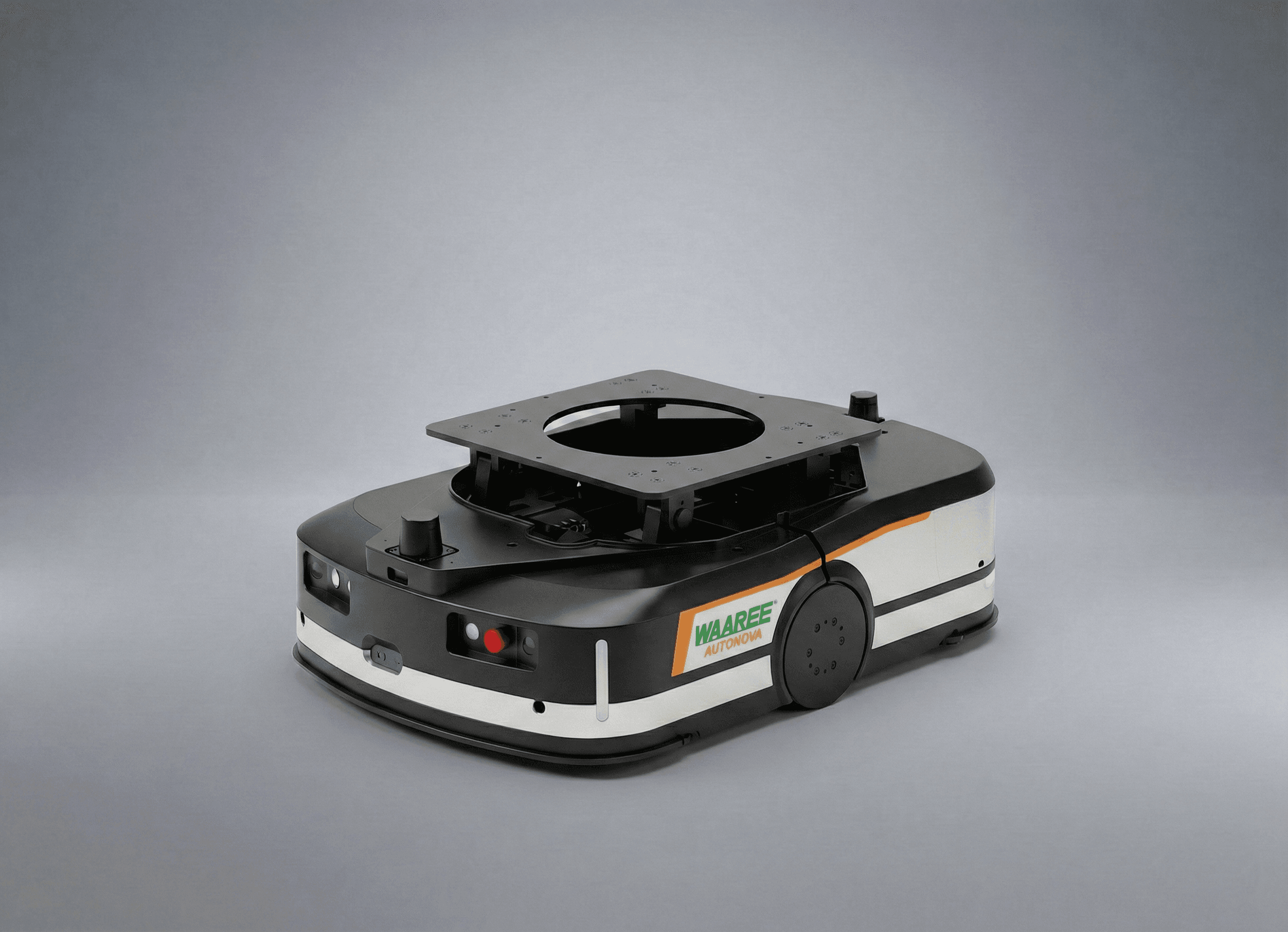

ATR-W600

ATR-W600-2L2T

Name: Transfer AMR
Brand: Waaree Autonova

Flexible transfer. Fast & intelligent.

The ATR-W600-2L2T is a versatile transfer AMR designed for fast and flexible material movement in industrial environments. With customizable material handling options, high operating speed, and precise navigation, it optimizes intralogistics workflows while maintaining safety and stability.

Request a demo

Payload: 600 kg
Max Speed: 2 m/s
Runtime: 8 h
Accuracy: ±10 mm

Scale · 1:10950 × 650 × 300 mm

Waaree Autonova · Industrial automation platformEngineered & manufactured by Waaree Autonova in IndiaEN 1525 safety compliantEN 12895:2015+A1:2019EN IEC 61000-6-2:2019EN IEC 61000-6-4:2019SAP · Oracle · Microsoft connectorsERP · WMS · MES integrations99.9% fleet uptime SLADeployments across 12+ industries24 × 7 operations supportIndustry 4.0 reference architectureWaaree Autonova · Industrial automation platformEngineered & manufactured by Waaree Autonova in IndiaEN 1525 safety compliantEN 12895:2015+A1:2019EN IEC 61000-6-2:2019EN IEC 61000-6-4:2019SAP · Oracle · Microsoft connectorsERP · WMS · MES integrations99.9% fleet uptime SLADeployments across 12+ industries24 × 7 operations supportIndustry 4.0 reference architecture

Overview

Built for the floor, from the floor up.

Highlights

600 kg rated load capacity
Customizable material handling method
QR code, texture & laser SLAM navigation
High-speed operation up to 2.0 m/s
Laser & TOF obstacle avoidance

Specifications

Basic Parameters

Model: ATR-W600-2L2T
Type: Transfer AMR
Rated Load: 600 kg
Product Dimensions (L×W×H): 950 × 650 × 300 mm
Rotation Diameter: 1000 mm
Ground Clearance: 20 mm
Material Handling Method: Customizable
Machine Weight: 140 kg
LCD Display: Supported
Touch Screen: Supported
Drive Method: Two-wheel differential drive
Navigation: QR code, texture, laser SLAM
Communication Mode: Wi-Fi

Mobility & Performance

Maximum Operating Speed: 2.0 m/s
Max Acceleration (No Load): 1.0 m/s²
Stopping Position Accuracy (No Load): ±10 mm
Stopping Angle Accuracy (No Load): ±1°
Climbing Ability: 5%
Obstacle Crossing Height: 10 mm

Safety & Obstacle Avoidance

Obstacle Avoidance Method: Laser + TOF
Collision Bar Detection: Front & Rear
Emergency Stop Button: Front & Rear
Acoustic & Optical Alarm: Supported

Battery & Charging

Battery Type: Lithium iron phosphate
Rated Operating Time: 8.0 hours
Charging Time: 1.5 hours
Charging Mode: Manual / Automatic, manual battery replacement
Charge–Discharge Cycle Life: 1500 cycles

Operating Environment

Operating Temperature: 0°C to 40°C
Charging Temperature: 0°C to 40°C
Operating Humidity: 5%–90% RH (non-condensing)
