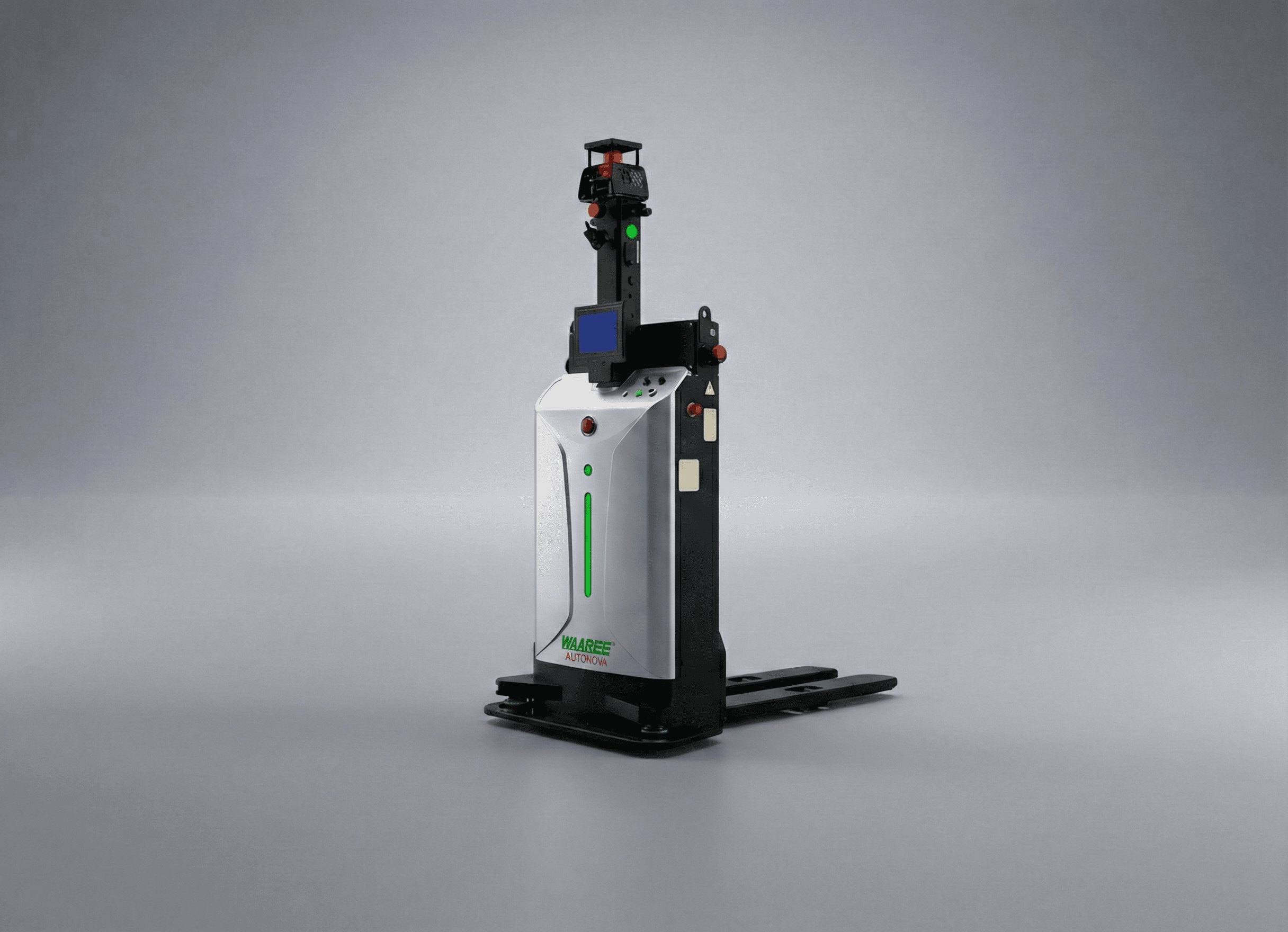

Stacking Forklift AMR: AFR-SF-W1500

Name: Stacking Forklift
Brand: Waaree Autonova

High-capacity stacking. Fully autonomous.

The AFR-SF-W1500 is a high-capacity stacking forklift AMR designed for automated pallet transport and stacking in warehouse and industrial environments. Equipped with Laser SLAM navigation, precise stopping accuracy, and comprehensive safety systems, it delivers stable and efficient autonomous forklift operations.

Request a demo Download spec sheet

Payload: 1500 kg
Max Speed: 1.2 m/s
Runtime: 6 h
Accuracy: ±10 mm

Scale · 1:101608 × 830 × 1910 mm

Waaree Autonova · Industrial automation platformEngineered & manufactured by Waaree Autonova in IndiaEN 1525 safety compliantEN 12895:2015+A1:2019EN IEC 61000-6-2:2019EN IEC 61000-6-4:2019SAP · Oracle · Microsoft connectorsERP · WMS · MES integrations99.9% fleet uptime SLADeployments across 12+ industries24 × 7 operations supportIndustry 4.0 reference architectureWaaree Autonova · Industrial automation platformEngineered & manufactured by Waaree Autonova in IndiaEN 1525 safety compliantEN 12895:2015+A1:2019EN IEC 61000-6-2:2019EN IEC 61000-6-4:2019SAP · Oracle · Microsoft connectorsERP · WMS · MES integrations99.9% fleet uptime SLADeployments across 12+ industries24 × 7 operations supportIndustry 4.0 reference architecture

Overview

Built for the floor, from the floor up.

Highlights

1500 kg rated load capacity
Laser SLAM navigation
Single rudder wheel drive for precise control
Advanced multi-sensor obstacle avoidance
Automated stacking and pallet handling

Specifications

Basic Parameters

Model: AFR-SF-W1500
Type: Stacking Forklift AMR
Rated Load: 1500 kg
Product Dimensions (L×W×H): 1608 × 830 × 1910 mm
Load Center Distance: 600 mm
Rear Fork Height After Lifting: 200 mm
Minimum Pickup Channel: 2000 mm
Minimum Fork Height from Ground: 84 ± 3 mm
Machine Weight: 420 kg
LCD Display: Supported
Drive Method: Single rudder wheel drive
Navigation: Laser SLAM
Communication Mode: Wi-Fi

Mobility & Performance

Maximum Operating Speed (No Load): 1.2 m/s
Stopping Position Accuracy (No Load): ±10 mm
Climbing Ability: 3° / 5%

Safety & Obstacle Avoidance

Obstacle Avoidance Method: Laser, visual, photoelectric, safety contact edge
Collision Bar Detection: Supported
Emergency Stop Button: Supported
Acoustic & Optical Alarm: Supported

Battery & Charging

Rated Operating Time: 6.0 hours
Charging Mode: Manual / Automatic, manual battery replacement
Charge–Discharge Cycle Life: 2000 cycles

Operating Environment

Operating Temperature: 0°C to 40°C
Operating Humidity: 5%–90% RH (non-condensing)

Deploy

Ready to deploy?

Book a site assessment with our automation team — we'll scope a fleet that fits your operation.

Book a demo Back to lineup
